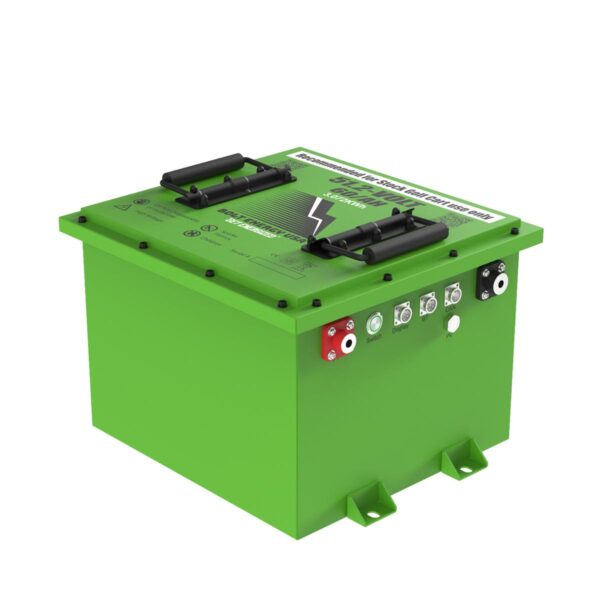

Bolt Energy 51V 60AH Heated Professional Battery Kit for ICON EV Golf Carts

Description

• Product Description

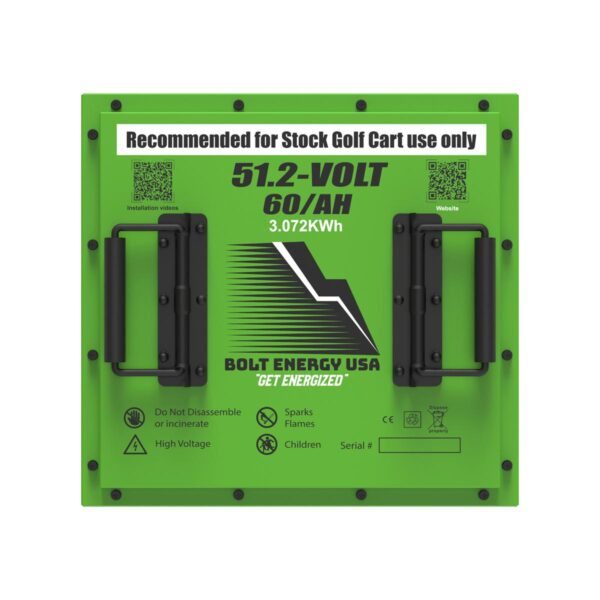

  51.2V 60Ah Battery with Professional Kit

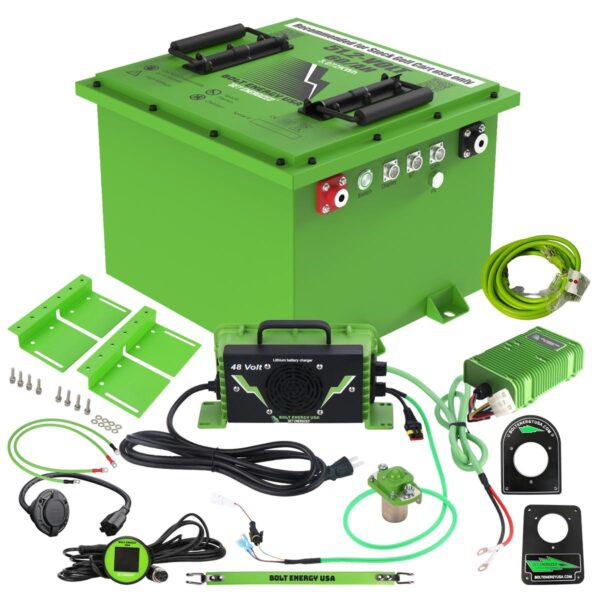

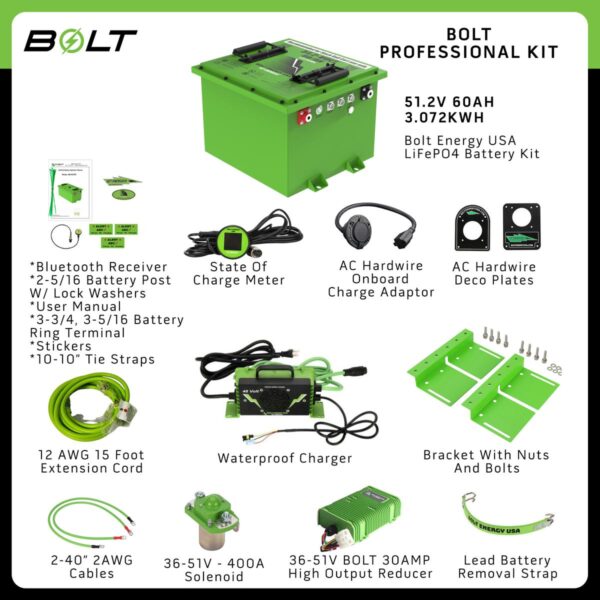

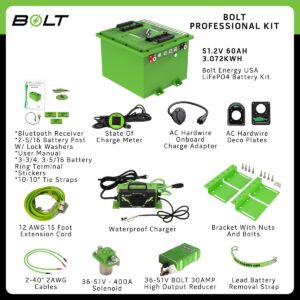

  Professional Kit Includes:

  • 51.2V 60Ah Battery
  • Bluetooth receiver
  • Smart SOC (State of charge meter)
  • Owner’s manual
  • Six 3/8 battery ring terminal connectors
  • Ten 10 tie straps
  • Bolt Energy USA stickers

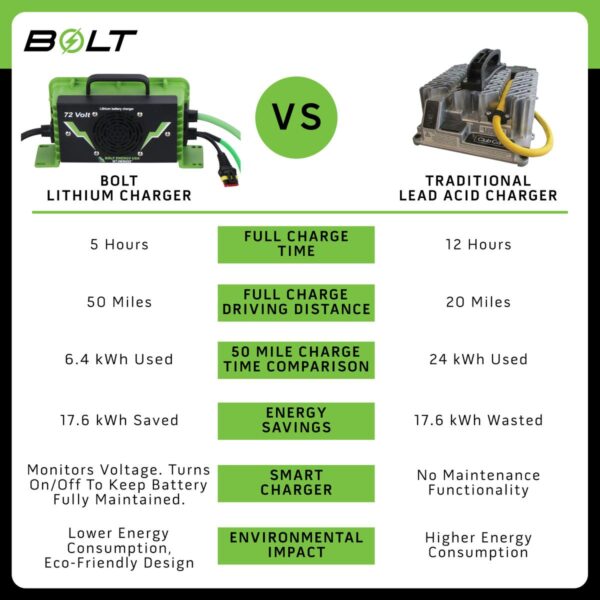

  • Waterproof high-speed charger
  • Mounting brackets, Nuts, and bolts
  • AC Hardwire PORT
  • AC hardwire DECO Cover plates
  • 30-amp reducer
  • Two 40″ 2AWG premium installation cables
  • 400A solenoid
  • Lead battery removal strap
  • 15ft 12 AWG Green lighted extension cord

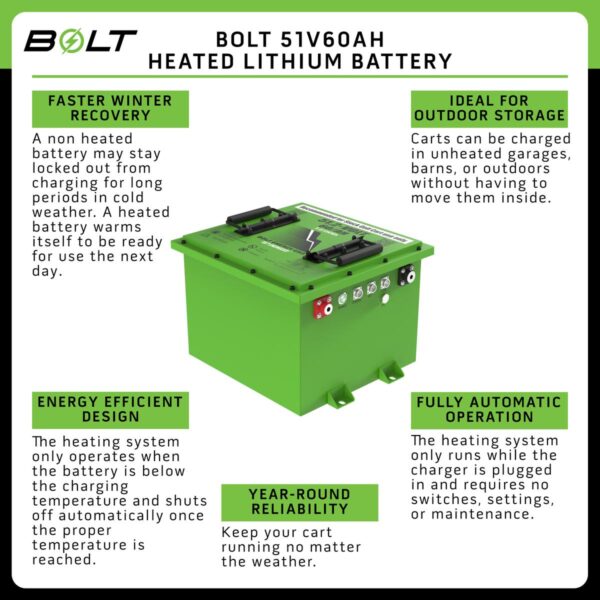

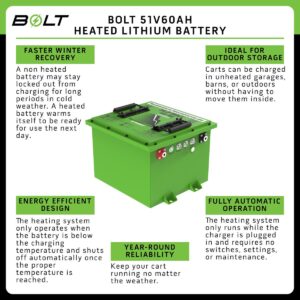

  Heated Battery Specifications:

  • Heated batteries warm themselves as they start to charge, and once they hit around 34 degrees, it starts charging normally
  • The heating system only runs when the battery is under the charging temperature and will automatically shut off once the proper temperature is reached
  • The battery can charge in unheated places such as garages, barns and even outdoors
  • The heating system only activates while the charger is plugged in
  • Heated batteries can warm themselves overnight and be ready to use the next day
  • A heated battery temperature charge and discharge specifications still operate the same as standard batteries

  Electrical Specifications:

  • Nominal Voltage: 51.2V
  • Working Voltage: 43.2 – 58.4V
  • Recommended Voltage: 48.0V – 57.0V
  • Nominal Capacity: 60Ah
  • Energy: 5,376Wh
  • Capacity at 25A: 252 min
  • Efficiency: 0.99
  • Self-Discharge: <3% per Month

  Discharge Specifications:

  • Maximum Continuous Discharge Current: 250A
  • Peak Discharge Current: 520A ± 15.6A (30S)
  • BMS Discharge Current Cut-Off:
    • 260 A ± A7.8A (50S)
    • 520A ± 15.6A (30S)
  • BMS Discharge Voltage Cut-Off: 40V
  • Recommended Low Voltage Disconnect: 48.0V
  • BMS Reconnect Voltage: 41.6V
  • Discharge Temperature: -4 to 140°F (-20 to 65°C)

  Charge Specifications:

  • Recommended Charge Current: 5 – 52A
  • Maximum Input Current: 350A
  • Charge Current Cut-Off: 375A
  • BMS Charge Voltage Cut-Off: 58.5V
  • Reconnect Voltage: <58.5V
  • Charging Temp. Range: 34°F to 140°F (0-60°C)

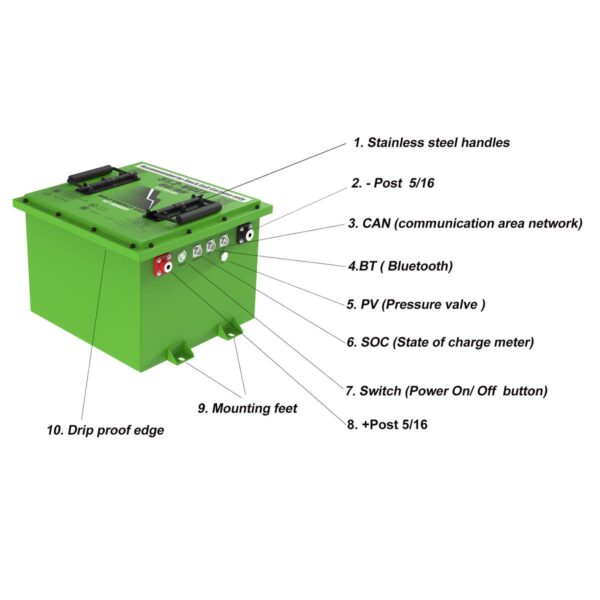

  Mechanical Specifications:

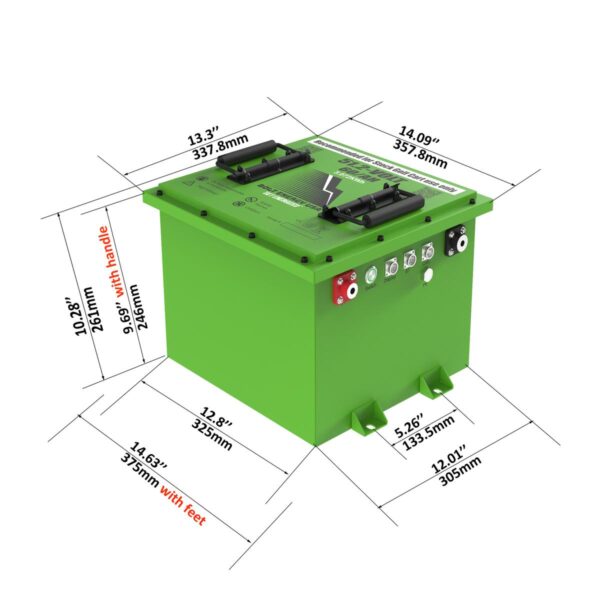

  • Dimensions (L x W x H): 12.8″ x 12.01″ x 10.28″
  • Weight: 72.75lbs (45.7kg)
  • Terminal Type: M8*1.5*25mm
  • Cell Configuration: 1P16S
  • Case Material: Powder Coated Steel
  • Enclosure Protection: Designed with IP66 Standard
  • Cell Type – Chemistry: Prismatic- LiFePO4

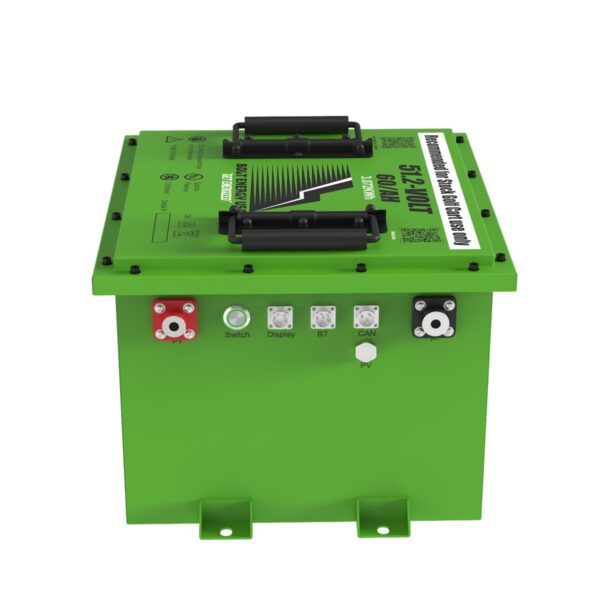

  Communication:

  • Bluetooth: Bluetooth receiver
  • CAN: CAN port for testing battery

  Specifications	Details
  Make	Gorilla
  Unit	EA
  Make Model Year Power	GORILLA G4 SS ELECTRIC Current Current GORILLA G2 ELECTRIC Current Current GORILLA G2U ELECTRIC Current Current GORILLA G4 ELECTRIC Current Current GORILLA G4L ELECTRIC Current Current GORILLA G6 ELECTRIC Current Current GORILLA G6L ELECTRIC Current Current
  Brand	Bolt Energy USA

  Resources

  Downloads

  • Bolt Energy 51V 60Ah Battery Installation Instructions (PDF)

  • Bolt Energy 51V 60Ah Battery Data Sheet (PDF)

  • Bolt Energy Warranty (PDF)

  • Bolt Energy Application Chart (PDF)

  • Bolt Energy Compatibility Chart (PDF)
