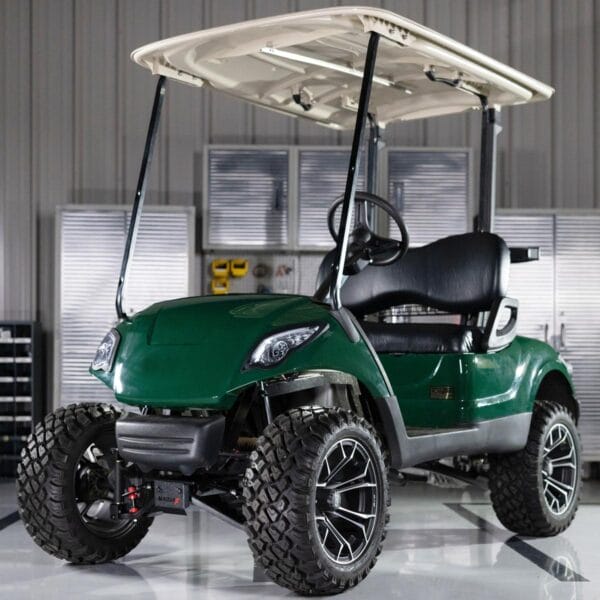

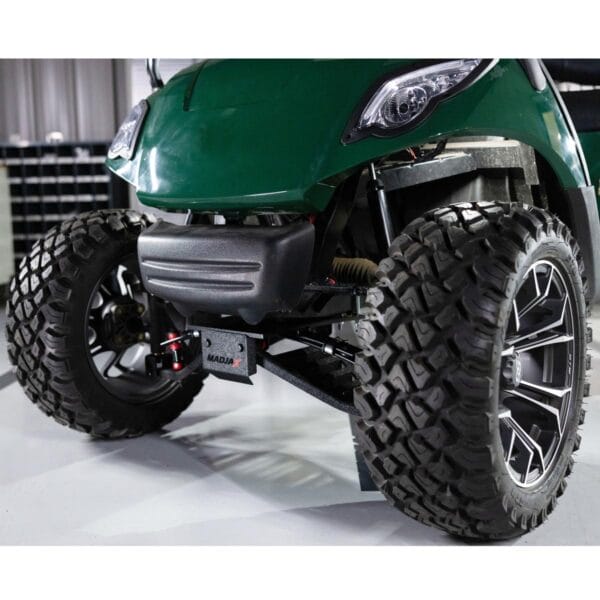

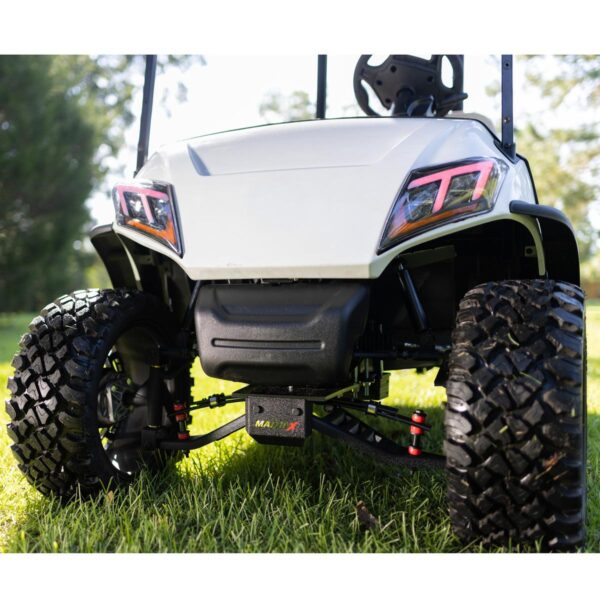

4” MadJax King XD Lift Kit for Yamaha G29/Drive & Drive2 with Solid/Fixed Rear Axle

This MadJax King XD lift kit was designed with the installer in mind, reducing the installation time by up to 25%. Adjusting the camber/toe during the install has never been easier, utilizing our turnbuckle and jam nut design. The kingpin design replaced the traditional Heim joints, providing a more simple and more durable lift kit.

Fitment:

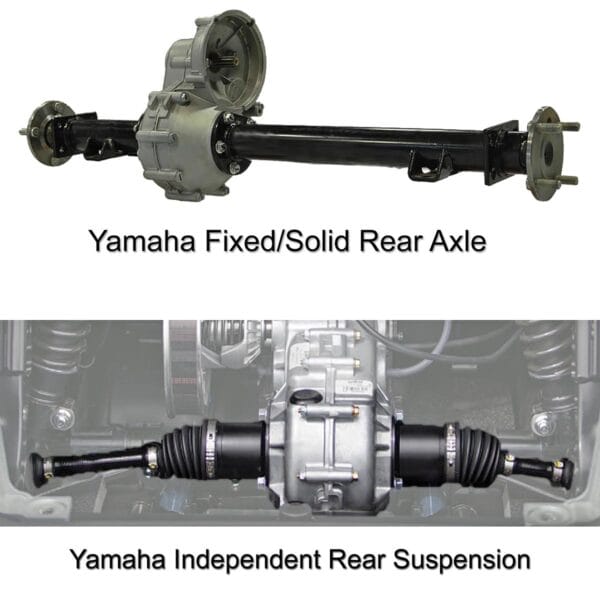

• 2007-2016 Yamaha G29/Drive with solid/fixed rear axle
• 2017-Up Yamaha Drive2 with solid/fixed rear axle
• For Yamaha G29/Drive & Drive2 models with an independent rear suspension you will need #16-062 (*sold separately)

Features:

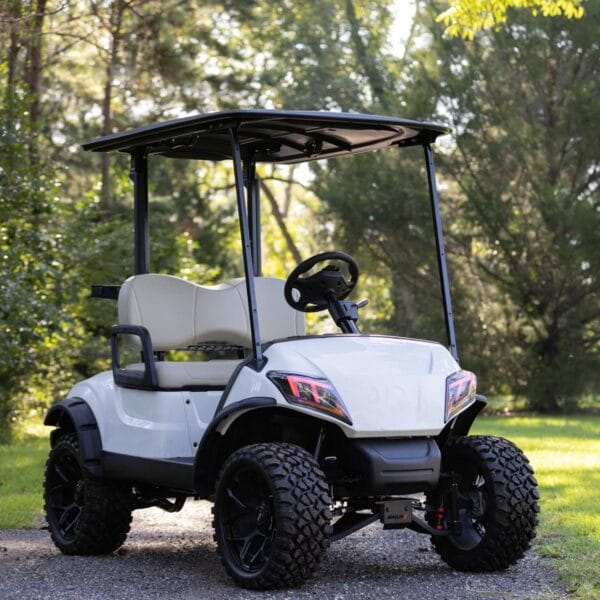

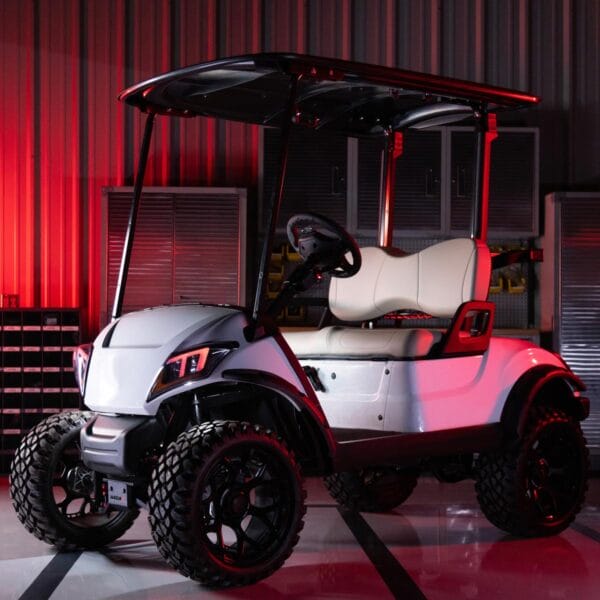

• Provides a 4″ Lift with clearance for up to 22″ tires
• Faster installation times compared to other lift kit styles

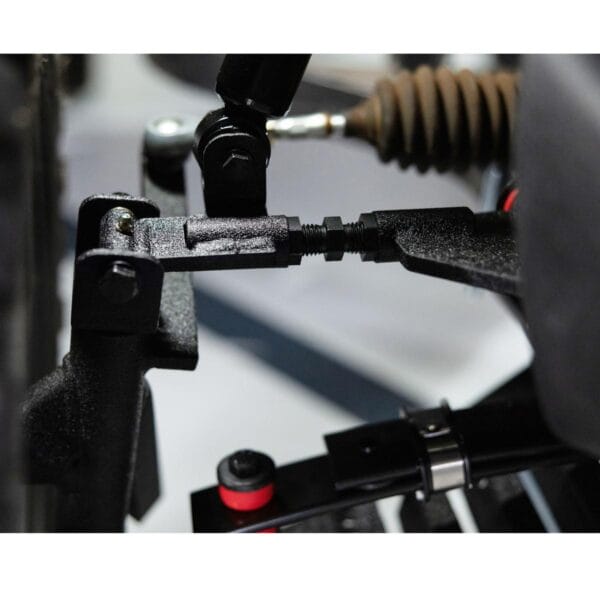

• Turnbuckle style camber adjustment for more efficient tire setting (no need to remove tires for adjustment after installation!)

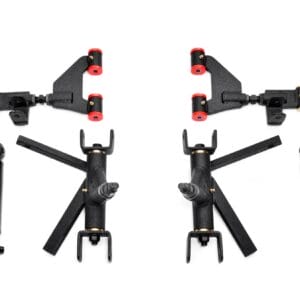

• Reliable kingpin design

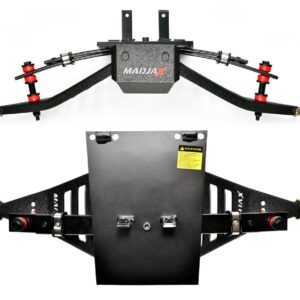

• Pre-assembled and pre-greased lower main frame

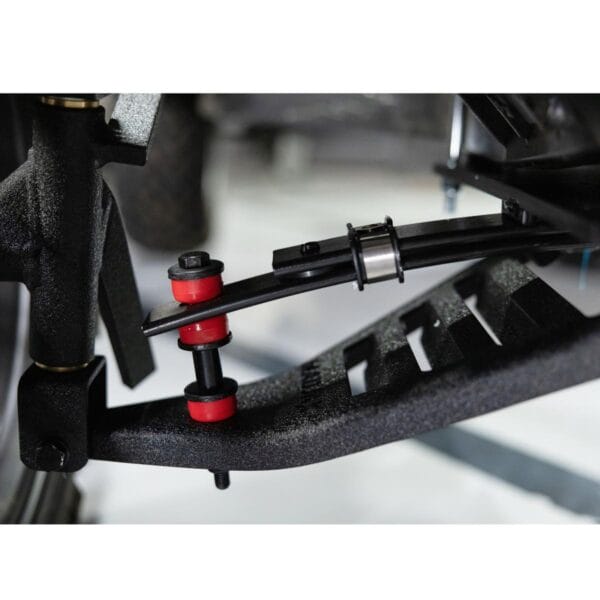

• Durable urethane bushings
• Armor coating provides your new lift kit protection from the elements
• Bolt-on design – No Drilling required!
• Includes a bottle of thread-locking adhesive

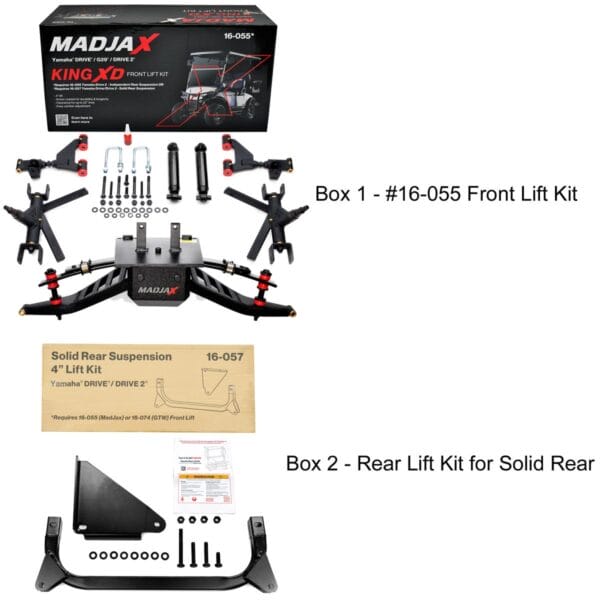

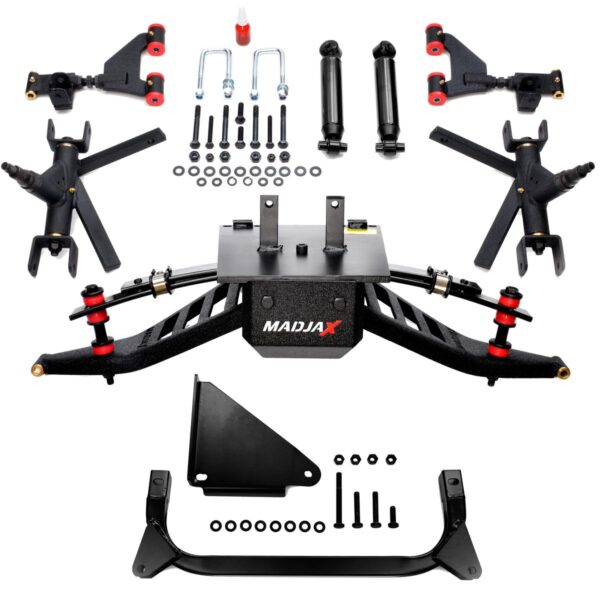

Kit Includes:

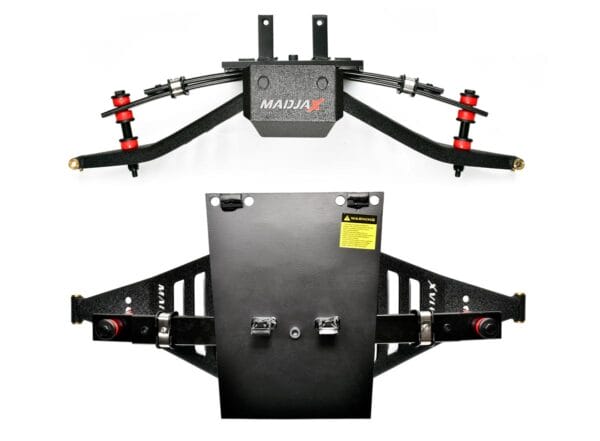

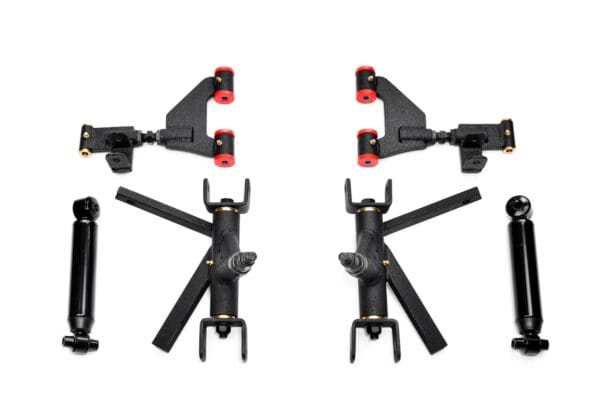

• #16-055 – Front Lift Kit for Yamaha G29/Drive & Drive2 (Box 1)

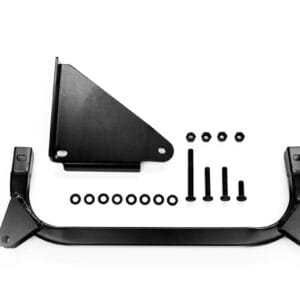

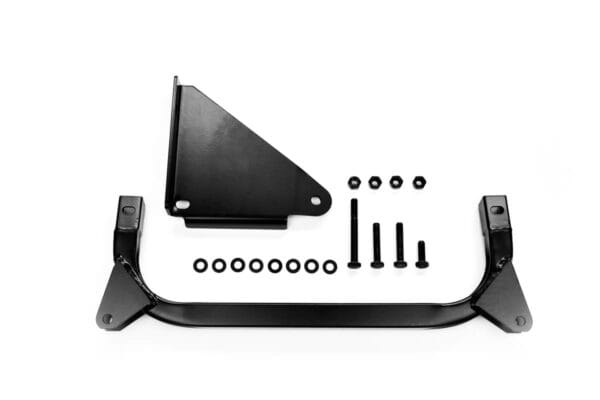

• #16-057 – Solid/Fixed Rear Axle Lift Kit for Yamaha G29/Drive & Drive2 (Box2)

Tech Tips:

• Minimum Wheel Size: 10″
• Recommended Minimum Tire Size: 20″ O.D. / Maximum 22” O.D.
• Front Counterweight Kit is recommended with this lift kit to help increase front steering stability – #16-058 (*sold separately)
• Installation videos are available to assist during installation (QR codes linking to the installation video can be found on the installation instructions included with this lift kit)
