9.5 Inch 4-Gauge Black Battery Cable

9.5 Inch 4-gauge black battery cable

Features:

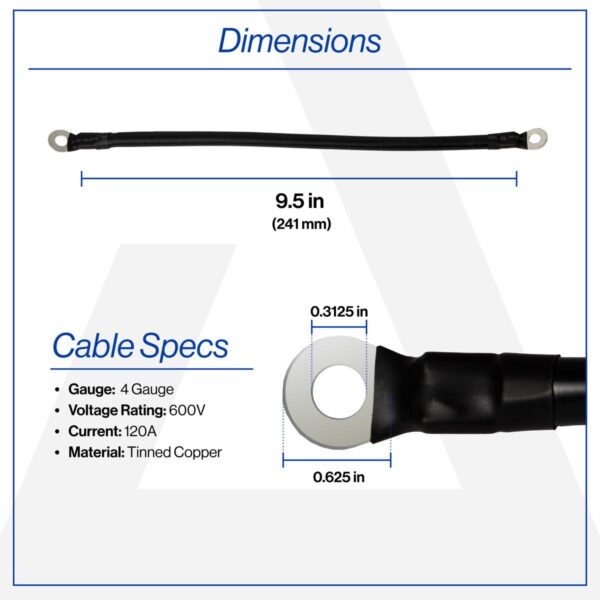

• 9.5” cable length
• 4-gauge wiring – better for upgrades such as motors, controllers, and solenoids

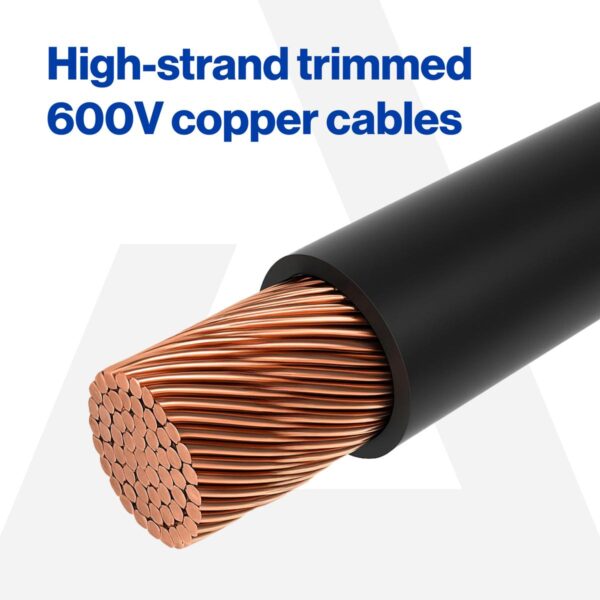

• High strand trimmed copper cables

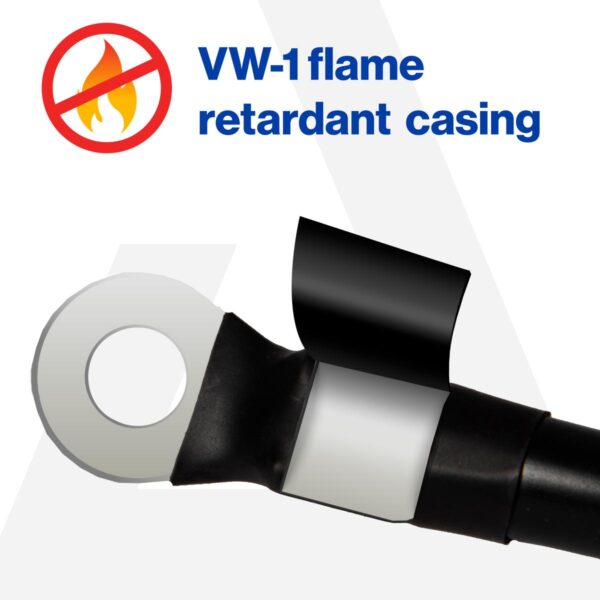

• All cables are black PVC Insulation jacket

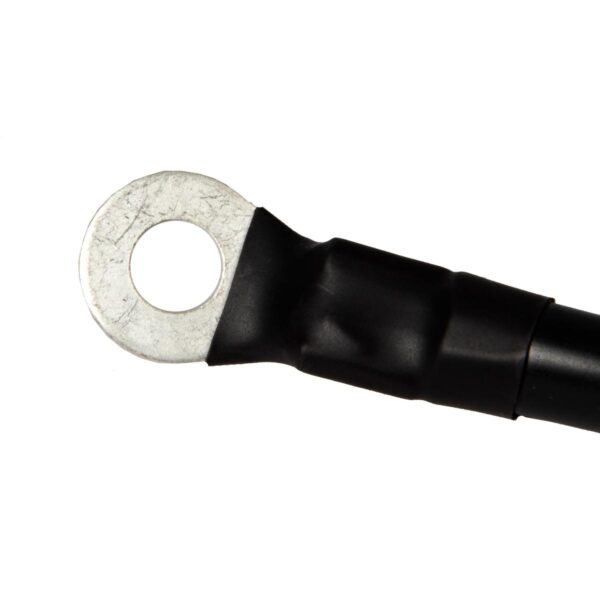

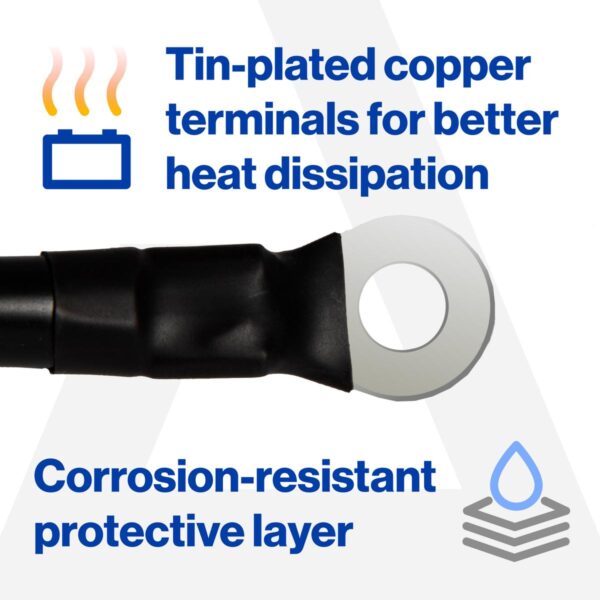

• Pre-cut & Professional Crimped with 5/16” Ring Terminals

Torque Specs:

• 5/16″ studs: 8–10 ft-lb
• 1/4″ studs: 6–7 ft-lb
• Always Check OEM Spec: Do not over torque which avoids cracking the post and ruining the battery
• After a week or two inspect for any wear or insulation rubbed off and retorque cables

Installation Order:

• Install all series jumpers first (battery to battery)
• Install controller/motor cables
• Positive (+) pack lead on first, negative (–) last
• Apply dielectric grease externally after tightening

Tech Tips:

• Key Off & Charger Unplugged
• Ensure Run/Tow switch is in the TOW position
• Disconnect the negative battery first
• Reconnect the positive first
• Take picture before starting as a reference during installation
• Use Insulated Tools, Protective Eye Wear, Gloves, Remove any jewelry
• Do not mix gauge size cables

OEM Cross Reference
