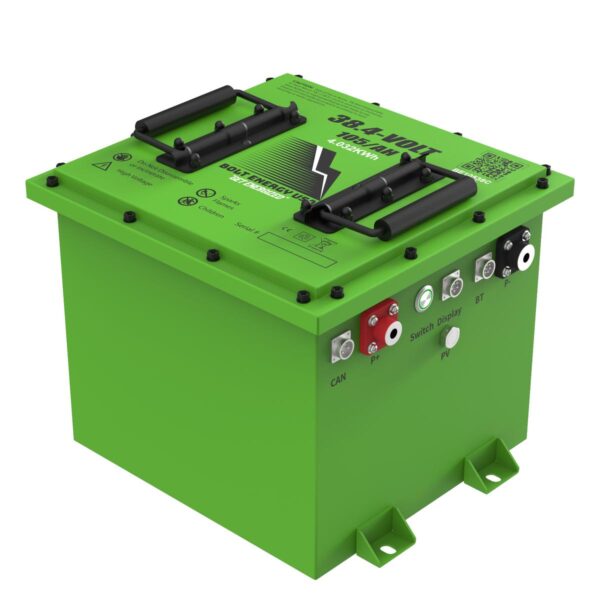

Bolt Energy 38V 105AH Standard Accessory Battery Kit

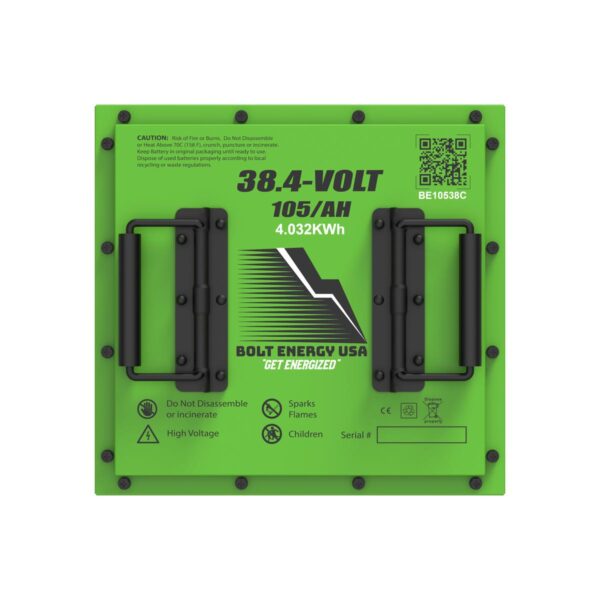

38.4V 105Ah Battery with Standard Kit

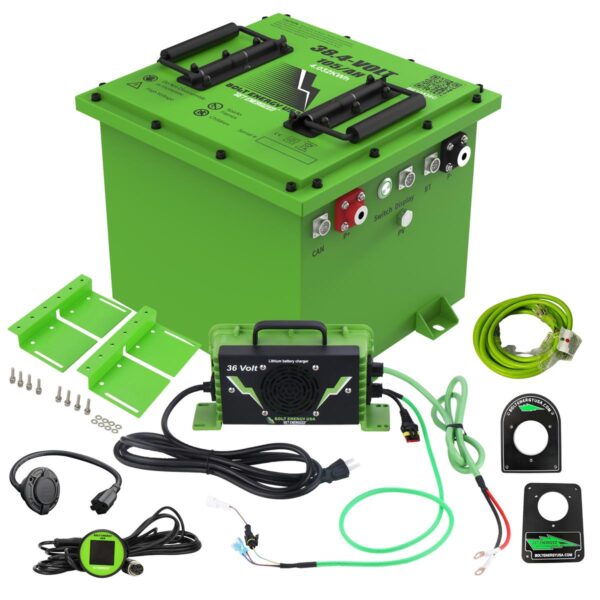

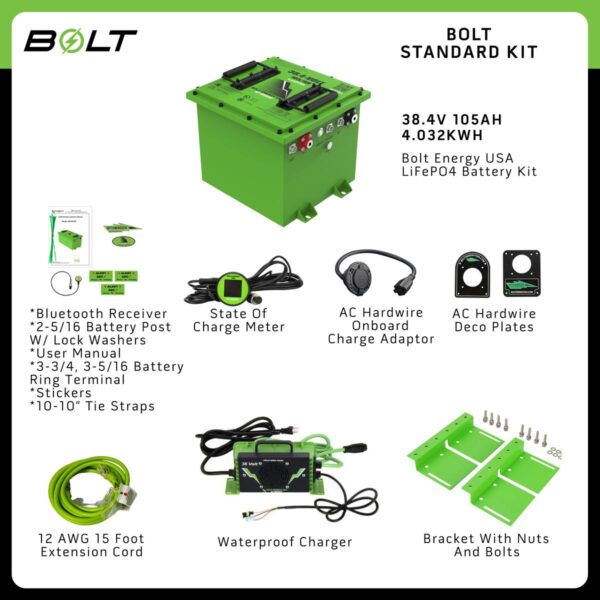

Standard Kit Includes:

• 38.4V 105Ah Battery
• Bluetooth receiver
• Smart SOC (State of charge meter)
• Owner’s manual
• Six 3/8 battery ring terminal connectors
• Ten 10″ tie straps
• Bolt Energy USA stickers
• Waterproof high-speed charger
• Mounting brackets, Nuts, and bolts
• AC Hardwire PORT
• AC hardwire DECO Cover plates
• 15ft 12 AWG Green lighted extension cord

Electrical Specifications:

• Nominal Voltage: 38.4V
• Working Voltage: 32.4 – 43.8V
• Recommended Voltage: 36.0V – 42.6V
• Nominal Capacity: 105Ah
• Energy: 4.032KWh
• Capacity at 25A: 252 min
• Efficiency: 0.99
• Self-Discharge: <3% per Month

Discharge Specifications:

• Maximum Continuous Discharge Current: 250A
• Peak Discharge Current: 520A ± 15.6A (30S)
• BMS Discharge Current Cut-Off:
  • 260 A ± A7.8A (50S)
  • 520A ± 15.6A (30S)
• BMS Discharge Voltage Cut-Off: 30V
• Recommended Low Voltage Disconnect: 36.0V
• BMS Reconnect Voltage: 31.2V
• Discharge Temperature: -4 to 149°F (-20 to 65°C)

Charge Specifications:

• Recommended Charge Current: 5 – 52A
• Maximum Input Current: 350A
• Charge Current Cut-Off: 375A
• BMS Charge Voltage Cut-Off: 43.8V
• Reconnect Voltage: <43.8V
• Charging Temp. Range: 34°F to 140°F (0-60°C)

Mechanical Specifications:

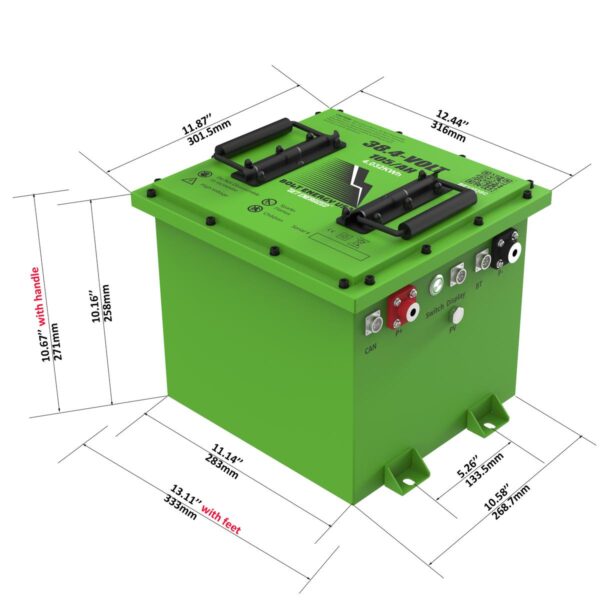

• Dimensions (L x W x H): 11.14? x 10.58? x 10.67?
• Weight: 77.27lbs (35.05kg)
• Terminal Type: M8*1.5*25mm
• Cell Configuration: 1P16S
• Case Material: Powder Coated Steel
• Enclosure Protection: Designed with IP66 Standard
• Cell Type – Chemistry: Prismatic- LiFePO4

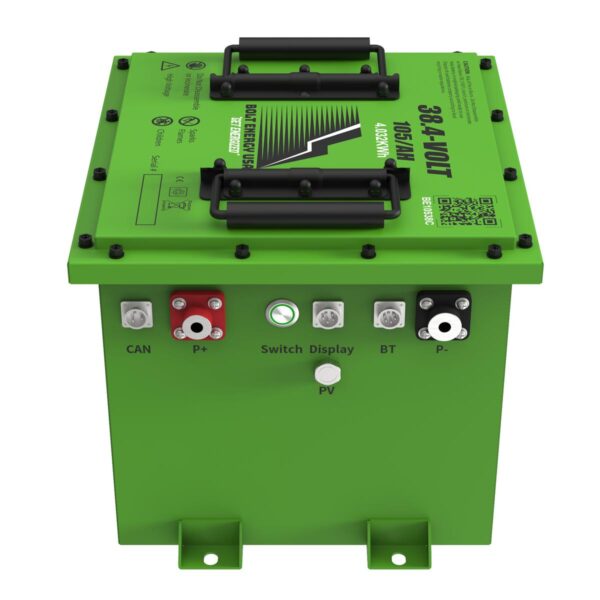

Communication:

• Bluetooth: Bluetooth receiver
• CAN: CAN port for testing battery
