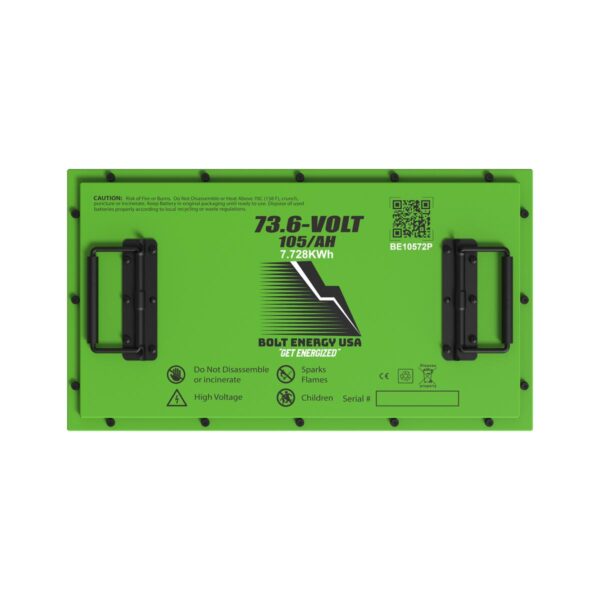

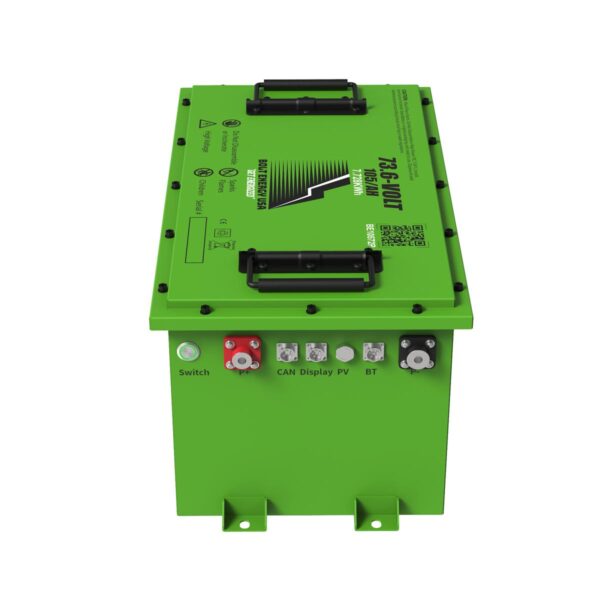

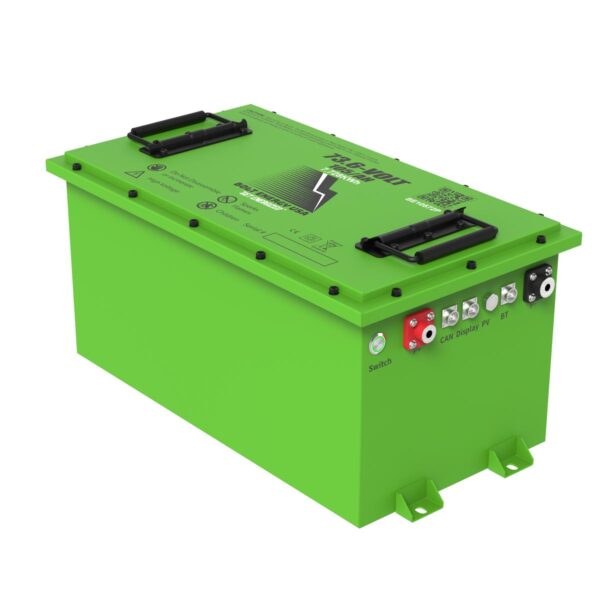

Bolt Energy Advanced EV1 17-23 74V 105AH Professional Battery Kit

73.6V 105Ah Battery with Professional Kit

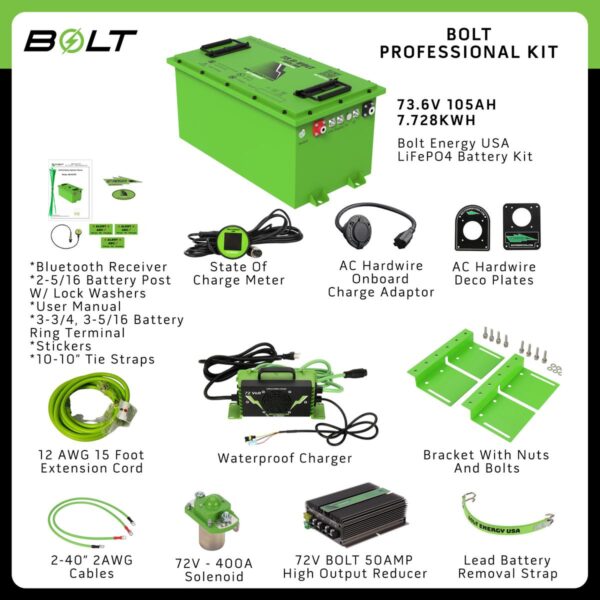

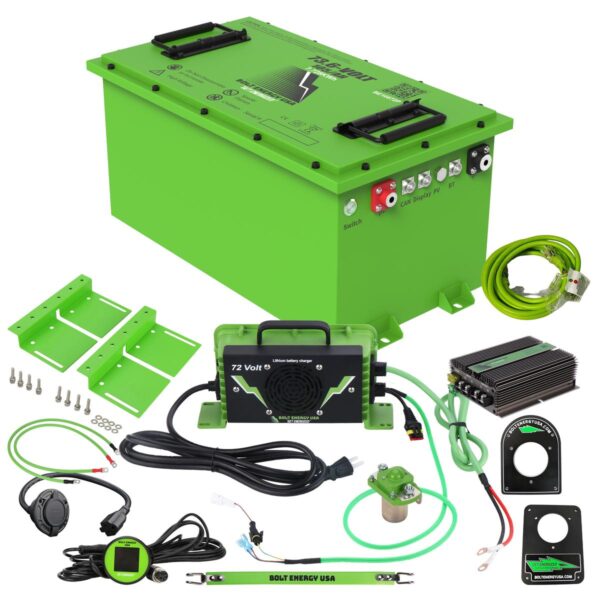

Professional Kit Includes:

• 73.6V 105Ah Battery
• Bluetooth receiver
• Smart SOC (State of charge meter)
• Owner’s manual
• Six 3/8 battery ring terminal connectors
• Ten 10″ tie straps
• Bolt Energy USA stickers
• Waterproof high-speed charger
• Mounting brackets, Nuts, and bolts
• AC Hardwire Port
• AC hardwire DECO cover plates
• 30-amp reducer
• Two 40″ 2AWG premium installation cables
• 400A solenoid
• Lead battery removal strap
• 15ft 12 AWG Green lighted extension cord

Electrical Specifications:

• Nominal Voltage: 73.6V
• Working Voltage: 62 – 83.95V
• Recommended Voltage: 69V – 81.93V
• Nominal Capacity: 105Ah
• Energy: 7,728Wh
• Capacity at 25A: 420 min
• Efficiency: 0.99
• Self-Discharge: <3% per Month

Discharge Specifications:

• Maximum Continuous Discharge Current: 250A
• Peak Discharge Current: 520A ± 15.6A (30S)
• BMS Discharge Current Cut-Off:
  • 260 A ± A7.8A (50S)
  • 520A ± 15.6A (30S)
• BMS Discharge Voltage Cut-Off: 57.5V
• Recommended Low Voltage Disconnect: 69.0V
• BMS Reconnect Voltage: 60.0V
• Discharge Temperature: -4 to 149°F (-20 to 65°C)

Charge Specifications:

• Recommended Charge Current: 5 – 52A
• Maximum Input Current: 350A
• Charge Current Cut-Off: 375A
• BMS Charge Voltage Cut-Off: 84V
• Reconnect Voltage: <84V
• Charging Temp. Range: 34°F to 140°F (0-60°C)

Mechanical Specifications:

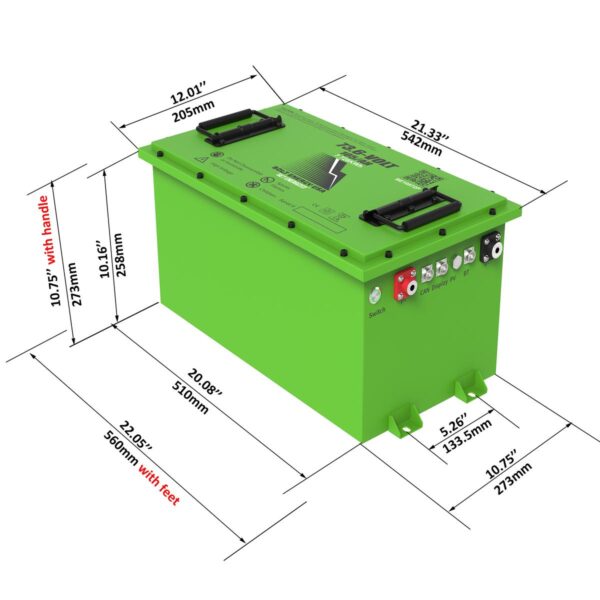

• Dimensions (L x W x H): 20.08″ x 10.75″ x 10.39″
• Weight: 137.26lbs (62.26kg)
• Terminal Type: M8*1.5*25mm
• Cell Configuration: 1P23S
• Case Material: Powder Coated Steel
• Enclosure Protection: Designed with IP66 Standard
• Cell Type – Chemistry: Prismatic- LiFePO4

Communication:

• Bluetooth: Bluetooth receiver
• CAN: CAN port for testing battery
